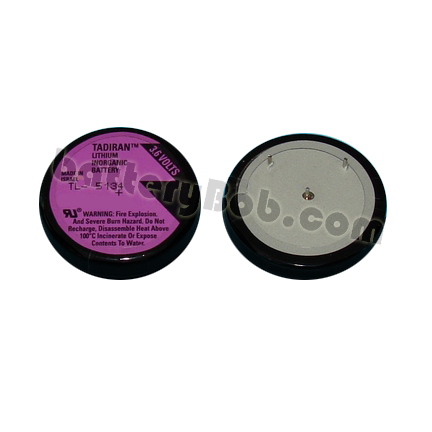

Tadiran Board Mountable Lithium TL-5134 COMP-24

Tadiran Board Mountable Lithium TL-5134 COMP-24
3.6v 1000mAh Lithium Wafer Cell Non-Rechargeable Genuine Fresh Tadiran 3-Pins Mountable
Item Specifications
Our PriceUS$15.35
Weight0.0625 lbs.
ChemistryLithium Thionyl Chloride
Mfg #COMP-24
Save wishlist

The USPS announced 5.16.12 10 AM EST No international shipments of any lithium batteries are allowed. Please do not order if you are outside the USA. UPS & FEDEX ban air shipment of these chemistries.

Non-Rechargeable Lithium Battery. Please dispose of ethically.

A Tadiran 3 Pins Board Mountable Lithium TL-5134 and Others - Single Battery - COMP-24

Fits and Replaces

  • Tadiran 15-5134-410001
  • Tadiran TL-51341
  • Tadiran TL-5134/P1
  • UNS 78036006

Manufacturer Tadiran
Warranty 6 months
Length 0.3" (7.62mm)
Width No" (0.00mm)
Height / Diameter 1.3" (33.02mm)
Voltage 3.6
mAh 1000
Number of Cells 1
Battery Chemistry Lithium
Lithium Content (g) 0.3
Rechargeable Non-Rechargeable

Qty Per Package 1

Type of Cell Wafer Cell

Tadiran Lithium Thionyl Chloride Batteries are designed with unique technology, providing more high performance power in less space. These lithium thionyl chloride (Li/SOCl2) cells feature greater energy density, up to 710 Wh/Kg, and 1420 Wh/I. Operating temperatures range from -55ºC to +125ºC. Tadiran Li/SOCl2 batteries have an open circuit voltage of 3.67V and an operating voltage of up to 3.6V. Available series include standard TL Series batteries, for long term high performance and rated to +85ºC, and TLH Series extended temperature batteries, for operation at temperatures up to 125ºC. Also available is the XOL Series, for extreme long-term operation and memory backup, as well as battery packs. With a 25 year operating life, Tadiran standard lithium batteries are ideal for remote locations and challenging environmental conditions.

  • Greater energy density
  • Environmentally friendly
  • Extended temperature range
  • Higher operating voltage
  • Longer life
  • Patented safety features
  • Environmentally friendly
